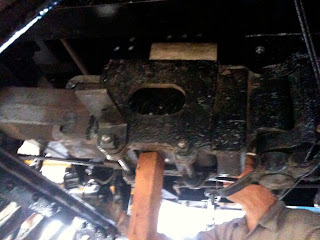

Here is the other, less freshly painted, draft gear mounted on the car - my apologies for the picture quality but it was very low-light. You can get a peek, through the side hole, of the outer draft gear spring - there's a second spring nested inside the first.There are several interesting features in this shot. First, to the lower right, is a 3-way pivot arm directly on the coupler pivot point. It has three arms, which connect the cut levers on each side to the coupler itself. One of the cut levers was forged at a blacksmith (see previous post).
And on the upper left, you see a bracket. This is one of several brackets along the coupler. They carry three air pipes, and one heavy 600V jumper cable. Normally, connections like this come from the carbody. But on 1005, the connections are hung from the coupler shank itself, so they pivot as the car pivots. That means it won't part an air hose going around a sharp curve.
Here you see the brackets which ride closer to the coupler. This is where three air pipes connect to the air hoses and "glad hands". An electrical connection is made here as well; this carries third rail current down the train. Another connection, up high, trainlines trolley power.The three air hoses are not the same as a locomotive. The first connection is, as you would expect, brake pipe. The second connection is a signal whistle, which allows the conductor to signal the motorman. The third connection is not main reservoir. It is called "control pipe", and it provides the air supply to the brake stand on a control trailer. In this configuration, the brake stand does not have a feed (reducing) valve - "control pipe" contains reduced pressure at the nominal brake pipe pressure.
Now, let's revisit the draft gear itself. Earlier this year, there was an RyPN discussion about couplers and draft gear on a narrow gauge car at the SPCRR, Society for Preservation of Carter Railroad, in Ardenwood, Fremont, CA.
